Large-scale sliding and folding doors for aviation and specialist facilities
In partnership with Jewers Doors Limited, BX Bunka Australia proudly offers the world-leading Esavian range of aviation and industrial doors. Engineered for exceptional performance and durability, these large-scale sliding and folding door systems are designed to meet the demanding requirements of hangars and specialist facilities. Each system can be customised with cladding, glazing, and integrated personnel access doors to suit specific site and operational needs.
| Feature | 126-SBR | 400-FBR | 400-FTH |
|---|---|---|---|
| Door Type | Horizontally sliding bottom rolling | Folding bottom rolling | Folding top hung |
| Max Width | Unlimited | Up to 40m | Up to 40m |
| Max Height | Unlimited | Up to 9m | Up to 9m |
| Operation | Multi-track uni- or bi-directional | Panels fold one or both sides (up to 20 panels each side) |
Panels fold one or both sides (up to 20 panels each side) |
| Insulation | Dependent on cladding | High insulation | High insulation |
| Cladding Options | Any specified cladding | Any specified cladding | Any specified cladding |
| Personnel Access | Optional integrated doors | Optional integrated doors | Optional integrated doors |
| Applications | Aircraft hangars, wide-span industrial | Aviation, defence, large industrial | Aviation, defence, large industrial |
- Esavian 126-SBR: Horizontally sliding, bottom rolling door system. Can be configured on multiple tracks as a multi-directional or uni-directional door of unlimited width and height. Accepts a variety of cladding materials and incorporates personnel access doors.
- Esavian 400-FBR: Folding, bottom rolling door system. Up to 20 panels folding to one or both sides, allowing openings of up to 40m wide x 9m high (subject to wind loads). Highly insulated and includes windows and personnel doors.

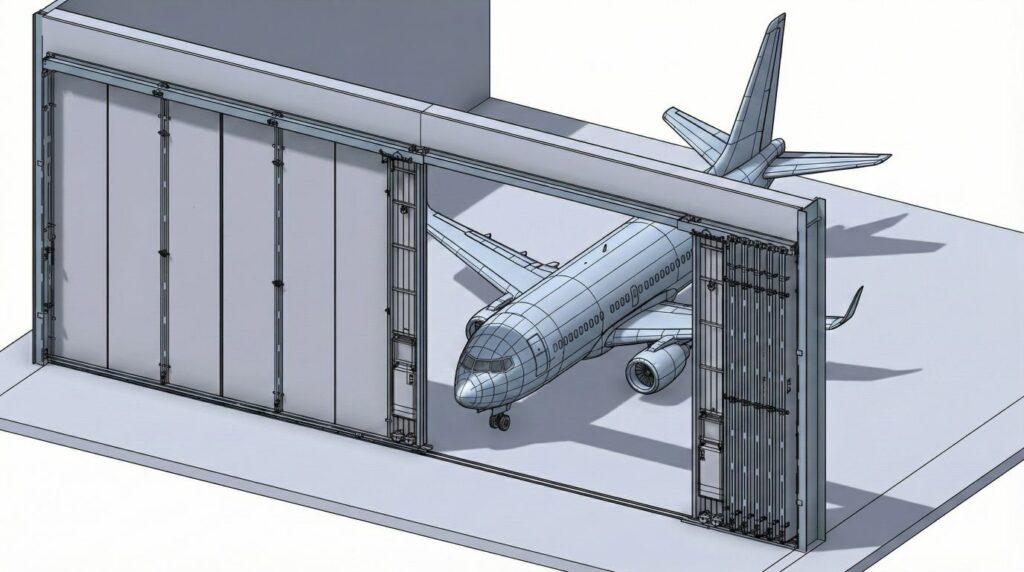

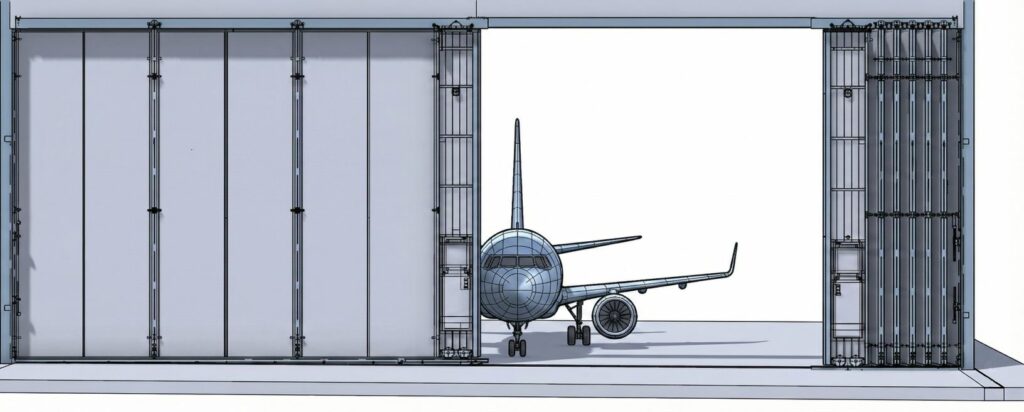

- Esavian 400-FTH: Folding, top hung door system. Up to 20 panels folding to one or both sides, allowing openings of up to 40m wide x 9m high (subject to wind loads). Highly insulated and includes windows and personnel doors.
Ideal for:
- Aircraft hangars
- Wide-span aviation facilities
- Defence and aerospace facilities
- Large industrial buildings
- Custom architectural projects requiring expansive door systems
Key Features:
- Unlimited width and height options depending on model
- Sliding or folding systems available
- Highly insulated designs with optional windows and personnel doors
- Configurable for uni-directional or multi-directional operation
- Cladding flexibility to match project requirements
- Designed for extreme durability and long service life
