Casino – Aluminium Roller Grille
Lightweight aluminium roller grille for secure retail and hospitality applications

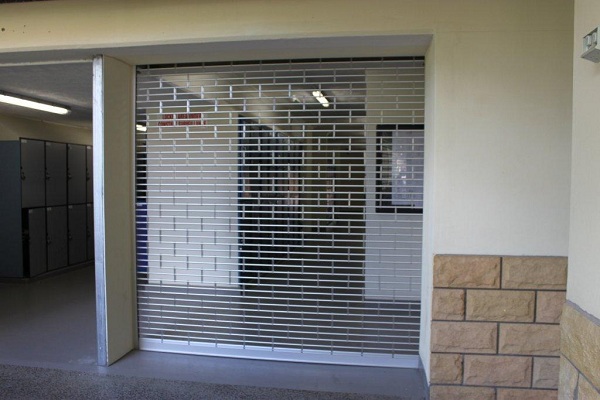

The CASINO Roller Grille is a lightweight all-aluminium grille designed to provide an attractive and secure barrier while allowing airflow, visibility and natural light. Constructed with 12mm aluminium tubing and nylon links, CASINO combines durability with a sleek brick-like pattern, making it ideal for shopfronts, counters and arcades. Easy to operate and low maintenance, the CASINO Grille is better suited for manaul applications, but has a motorised option for larger doors.
Key Features
High Visibility
Secure
Low Maintenance
Customisable
Specifications Summary
| Feature | CASINO – Aluminium Roller Grille |
|---|---|
| Door Type | Lightweight Aluminium Roller Grille |
| Span Width | Height: 4000 mm (motorised), 3000 mm (Manual) Width: 5500mm (motorised), 3000mm (Manual) |
| Operation | Manual or motorised |
| Curtain | 12mm aluminium tubes with nylon links in brick-like pattern |
| Noise | Smooth, low-maintenance operation |
| Locking | Two-way mortise key lock or sliding shoot bolt |
| Finish | Clear anodised or powder coated |
| Applications | Shopfronts, pedestrian openings, arcades, bar and counter tops, clubs |
Additional notes

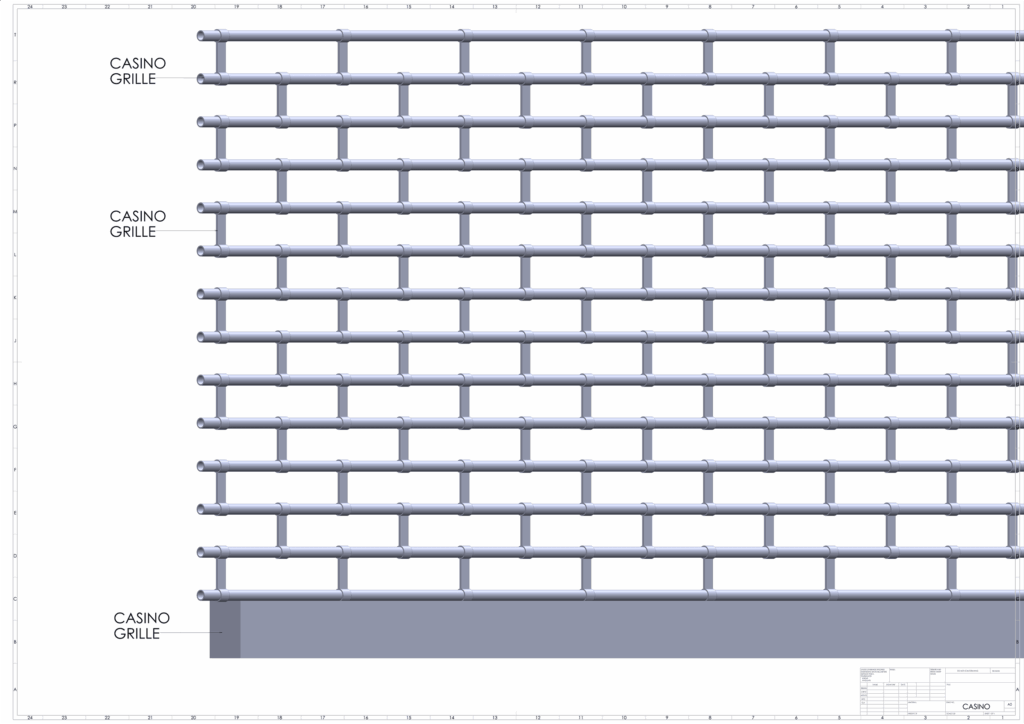

- Curtain: Constructed from 12mm aluminium tubes at 50mm centres connected with 116mm x 10mm nylon links
- Side guides: 50mm × 33mm extruded aluminium with false back; optional Nylofelt buffer
- Brackets: 90mm × 40mm mild steel
- Mullions: Two-piece aluminium, lift-out type with shoot bolts; special wide mullions available for angled junctions
- Standard finish: Clear anodised; optional powder coat
