Mikado Multi Folding Door
Low Maintenance
Customisable
Quiet
Space Efficient
Product Info
Specifications
Additional Notes
User-friendly aluminium folding doors with ventilation
The Mikado Folding Door is designed for ease of use, ventilation and flexible access solutions. Constructed from extruded aluminium with interlocking hinges and rollers, the panels fold, slide and stack neatly into a pocket with minimal effort. Available in single or bi-parting configurations, MIKADO can also be designed with a curved track for increased flexibility, allowing panels to travel around corners. With a choice of infill panels, the MIKADO provides both functionality and a pleasing visual appearance, making it ideal for commercial, retail and hospitality applications.
| Feature | Details |
|---|---|
| Door Type | Aluminium folding door system |
| Panel Sizes | 150 mm or 300 mm wide panels |
| Max Height | Up to 4200 mm |
| Width | Unlimited (stacking into pocket) |
| Operation | Manual hand-push; panels fold and slide into wall pocket |
| Track Options | Straight or curved overhead track |
| Panel Infill | Standard 3 mm clear polycarbonate; optional solid aluminium or perforated aluminium for added security |
| Locking | Lead post lockset every ~2 m; lock clip design allows easy maintenance |
| Finish | Clear anodised or powder coated |
| Applications | Retail, hospitality, medical, social and sports complexes, commercial premises |
- Panels: Aluminium extrusions with polycarbonate infils
- Top Guide: 41mm Top guide which can be recessed
- Larger doors can be bi-folds, and open into both sides of the opening
- Standard finish: Clear Anodised; optional powder coat
Ideal for:
- Retail shopfronts
- Hospitality venues
- Medical facilities
- Social and sports complexes
- Commercial premises requiring flexible openings
Key Features:
- Single or bi-parting openings with optional curved track
- Effortless hand-push manual operation

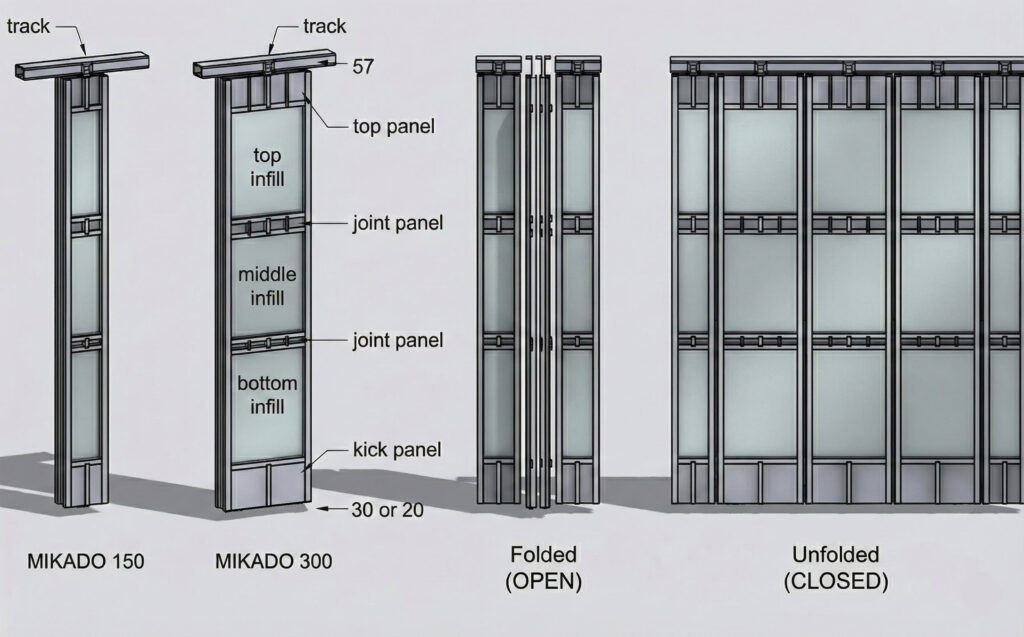

- Choice of 300mm or 150mm wide panels
- Standard 3mm clear polycarbonate panel infill
- Optional solid aluminium or multi-hole aluminium panels for enhanced security
- Stack neatly into wall pockets for space efficiency
- Maximum height up to 4200mm, width as required
- Available in anodised or powder coated finishes
