Slimline Aluminium Shutter
(42mm) Aluminium Roller Shutter
The SLIMLINE Aluminium Roller Shutter is designed to provide strong security, durability and aesthetic appeal for a wide range of markets. Purpose-built for retail, hospitality, tourism, education and clubs, the SLIMLINE offers exceptional protection with a contemporary finish. Compact and versatile, it is commonly specified for fire hose reel cupboards, counter tops, bar tops and doorways. Easy to operate and low maintenance, the SLIMLINE can be manually operated or motorised depending on the application.
Key Features
High Cycle Performance
Secure
Customisable
Quiet
Specifications Summary
| Feature | SLIMLINE – Aluminium Roller Shutter |
|---|---|
| Door Type | Aluminium Roller Shutter |
| Span Width | Up to 3.0m wide x 3.0m high (manual); up to 5.5m wide x 4.0m high (motorised) |
| Operation | Manual or motorised |

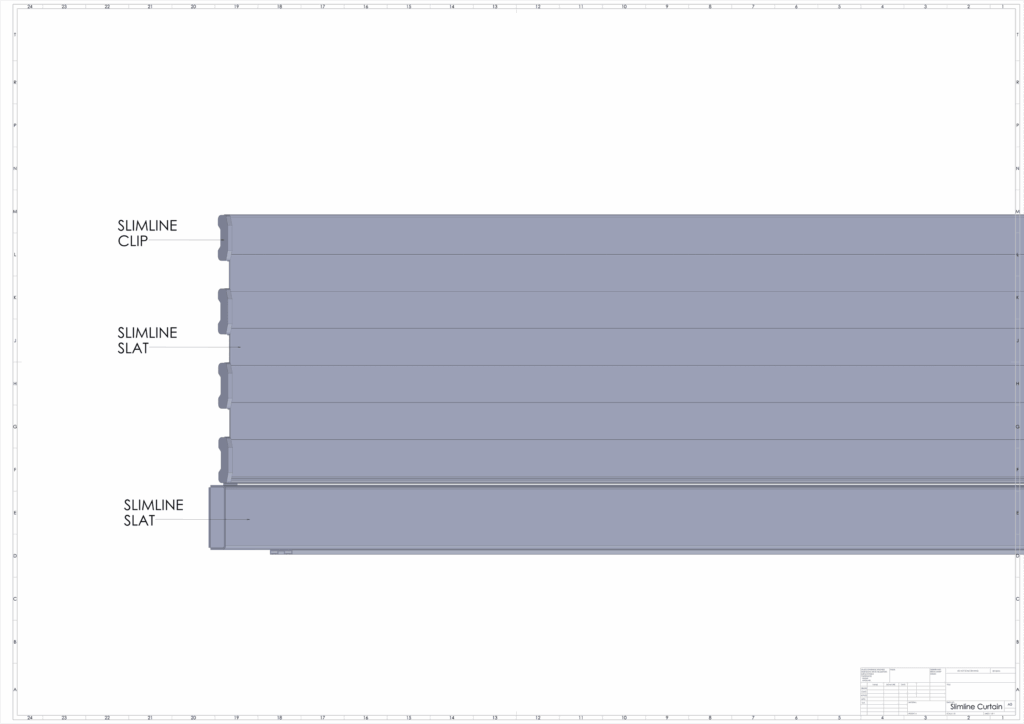

| Curtain / Slats | 43mm x 1.4mm extruded aluminium slats with nylon end clips |
| Noise | Smooth, quiet operation with minimal maintenance |
| Locking | Two-way mortise key lock or sliding shoot bolt (manual); motorised via key switch |
| Finish | Clear anodised or powder coated colours |
| Applications | Retail shops, hospitality venues, schools, fire hose reel cupboards, bar and counter tops |
Additional notes
- Motorisation: Includes guides, Motor with manual release, Automation and Safety accesories availible
- Two-point locking bottom rail
- Can be installed in between walls with minimal side room
- Multi angle Mullions are available to extend door openings
