Heavy-duty aluminium roller grille for large commercial and public facilities
The STADIUM Roller Grille is a heavy-duty aluminium grille designed for high-security environments where airflo1w and visibility must be maintained. Constructed from 19mm extruded aluminium tubes connected with reinforced links, STADIUM is capable of spanning large openings up to 4.5m high and 8.0m wide in a single span. With a robust brick-like pattern, it is the preferred solution for shopping centres, car parks, sports facilities and other high-traffic areas.
| Feature | Details |
|---|---|
| Door Type | Heavy-duty Aluminium Roller Grille |
| Span Width | Up to 4.5m high x 7.85m wide (single span) |
| Operation | Manual or motorised (wide range of control options) |
| Curtain | 19mm aluminium tubes with reinforced links in brick-like pattern |
| Noise | Optional rubber twin fin or mohair felt buffers for quieter operation |
| Locking | Centrally mounted bottom rail lock (manual locking not recommended with motorised), Optional Shoot Bolts |
| Finish | Clear anodised standard; powder coated optional |
| Applications | Security car parks, shopping centres, sports complexes, clubs, bars, arcades, commercial facilities |
- Motorisation: Includes guides, Motor with manual release, Automation and Safety accesories availible
- Slide Guides 105mm x 35mm guide for motorized or 50mm x 33mm guide for manual
Ideal for:

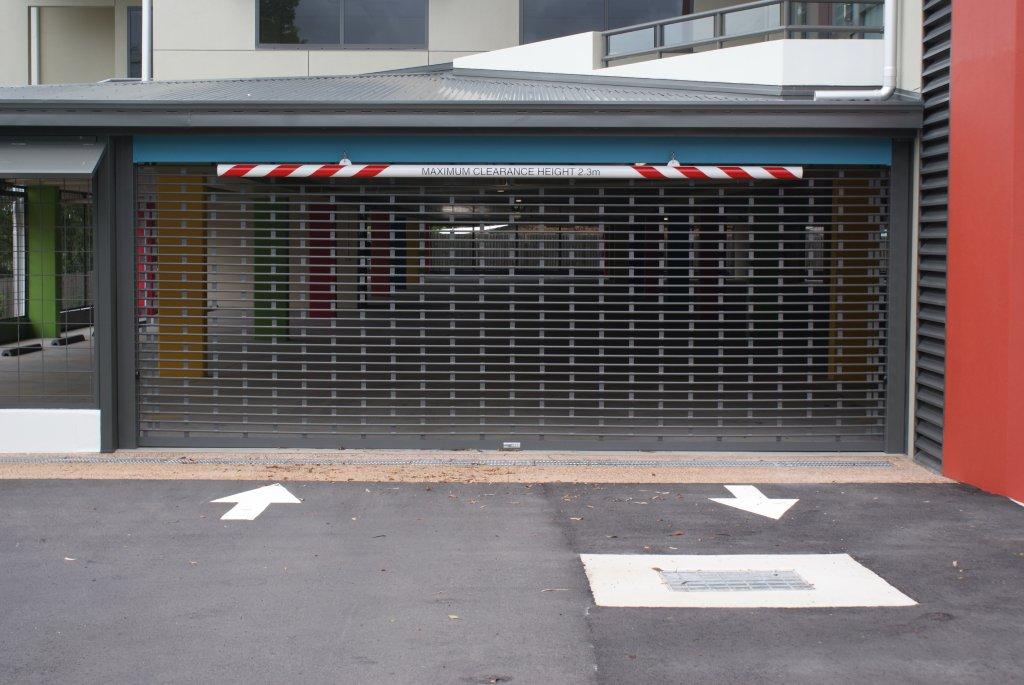

- Security car parks
- Shopping centres and retail complexes
- Arcades and sporting complexes
- Clubs, bars and hospitality venues
- Public buildings and transport facilities
Key Features:

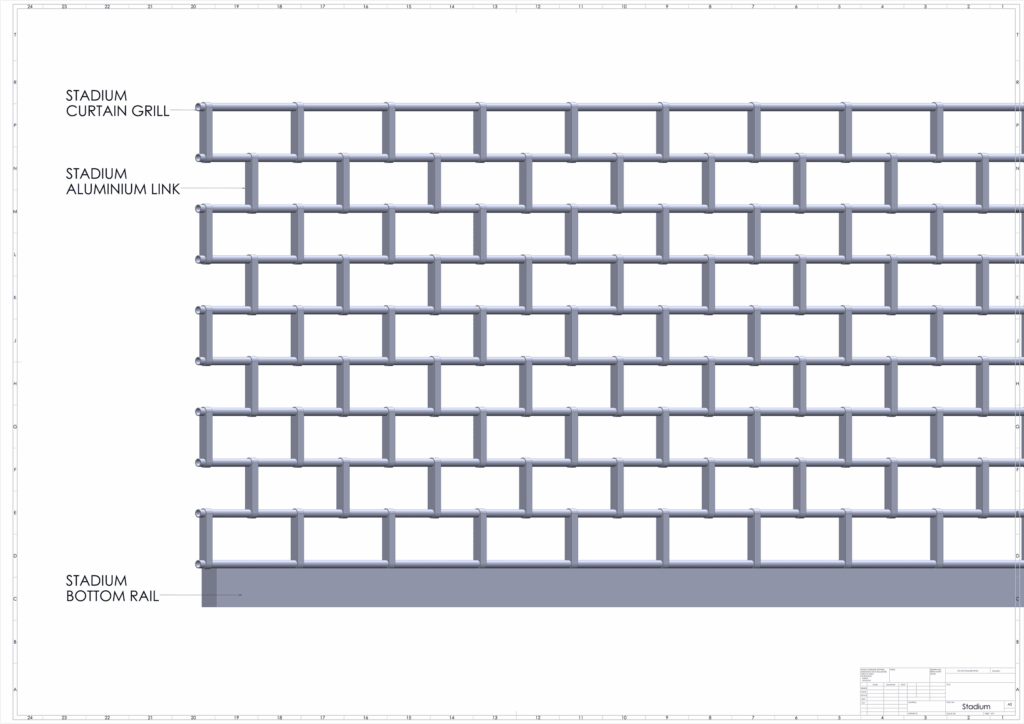

- 19mm aluminium tubing with reinforced links in a brick-like pattern
- Suits openings up to 4.5m high x 8.0m wide in a single span
- Manual or motorised operation with wide range of control options
- High-strength grille for high-security applications
- Optional rubber twin fin or mohair felt buffers for quiet operation
- Available in clear anodised or powder coated finishes
