A4000 Vertical Quad-Fold Counterweight Balanced Door
High Cycle Performance
Wind Rated
Customisable
Quiet
Product Info
Specifications
Additional Notes

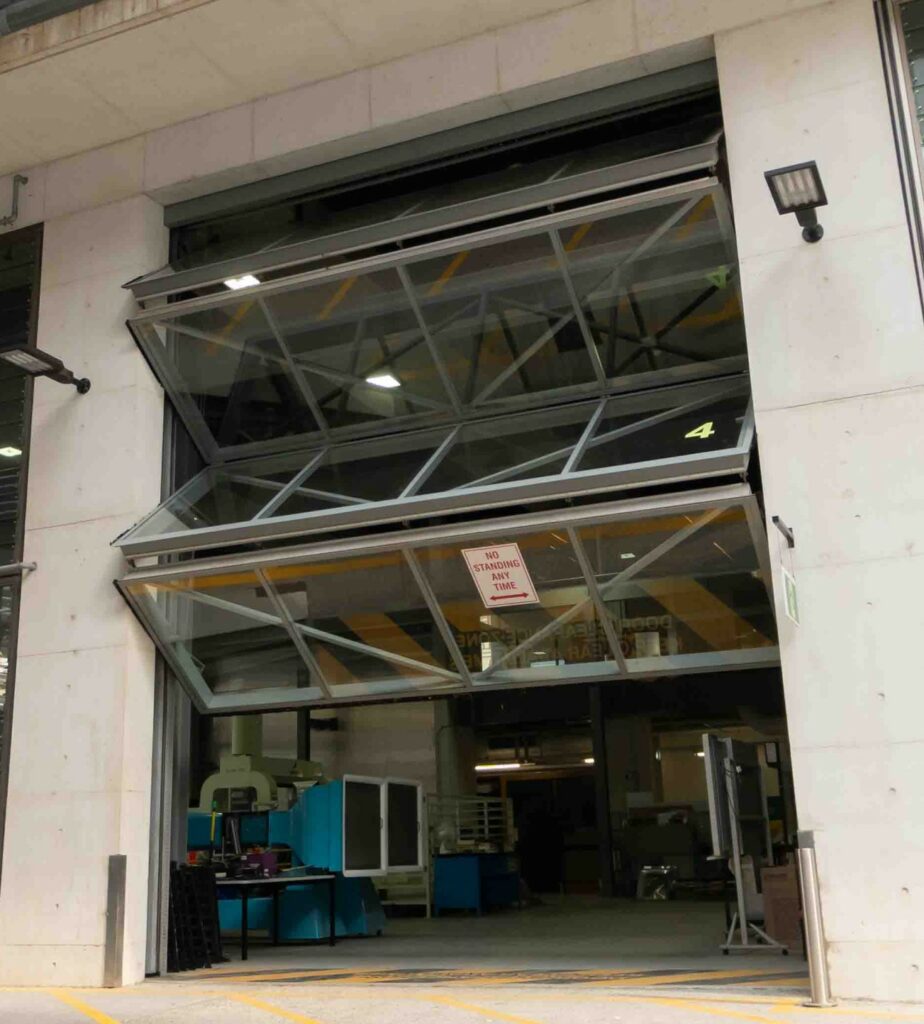

Four-leaf Bi-Fold Counterweight Balanced Door
The ARCO A4000 is a custom-made counterweight balanced door designed for applications where security, superior appearance and minimal internal projection are required. It is particularly suited to very high openings, with only around one-eighth of the opening height needed for internal projection. The A4000 combines high performance with versatility in cladding and glazing options, while delivering quiet and smooth operation through its soft start/close motor system. With ARCO’s custom mechanism, the A4000 achieves over 100,000 cycles per year with low maintenance.
| Feature | A4000 – Four-leaf Foldaway Counterweight Balanced Door |
|---|---|
| Door Type | Four-leaf Foldaway Counterweight Balanced Door |
| Span Width | High openings from 6m to 10m |
| Operation | Motorised as standard |
| Cycles | Over 100,000 cycles annually with minimal maintenance |
| Noise | Ramp-up and ramp-down motor provides quiet and smooth operation |
| Motorisation | Variable drive unit with manual release, limit switches, overhead shaft and control system |
| Cladding / Glazing | Trimdek, Custom Orb, laminated or toughened glass, polycarbonate, Perspex, Laserlite, aluminium perforation panels, aluminium composite panels (ACP) |
| Wind Load | Designed to site-specific wind loads to AS/NZS 1170.2:2021, including cyclonic conditions |
| Applications | Workshops, warehouses, heavy industrial sites with very high openings |
- Motorisation only: No manual option. Includes guides, limit switches, overhead shaft and control system.
- Locking: Motorised doors lock via the drive unit, with optional electric or magnetic locks available.
- Cladding / Glazing: Compatible with Trimdek, Custom Orb, laminated or toughened glass, polycarbonate, Perspex, Laserlite and aluminium composite panels. Vertical bar grille format also available.
- Installation: Requires operational clearances and permanent space. These must be considered early as they impact drive-through and structural planning.
Ideal for:
- Workshops
- Warehouses with high openings (6–10m)
- Heavy industrial facilities
- Commercial premises with large-scale entry requirements
- Mining operations
- Automotive facilities (bus depots, truck workshops, large service centres)
- Aviation hangars
- Defence facilities
- Correctional centres
Key Features:
- Four-leaf foldaway design for very high openings
- Minimal internal projection (around one-eighth of opening height)
- Over 100,000 cycles annually with minimal maintenance
- Ramp-up, ramp-down motor for quiet and smooth operation
- Designed to withstand site-specific wind loads (AS/NZS 1170.2:2021), including cyclonic conditions
- Accepts a wide range of cladding and glazing materials
- Built for industrial and commercial applications requiring large-scale access
- Optional electric or magnetic locks for added security
